News

Medical Applications

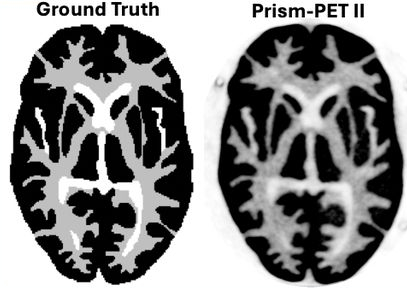

The detectors and electronics systems of PETsys allow flexible and straightfoward assembly of PET scanners of different scope, geometry and performance. The common denominator is the use of Silicon Photomultipliers allowing for cost effective, compact and high-performance PET systems with unmatched timing performance. Different detector modules options are appropriate for a range of applications, from large whole-body systems to small high-resolution scanners. Detectors with DoI capability will also become available. All detectors have very high fill factor not compromising the scanner counting sensitivity. Last but not least, Time-of Flight capability allows for large sensitivity gains in whole-body scanners.

(read more)

PETsys Microelectronics

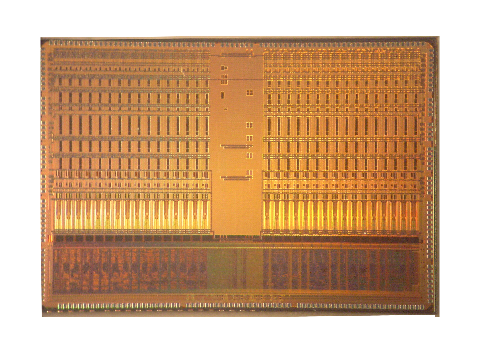

PETsys Electronics provides Application Specific Integrated Circuits (ASIC) for applications based on radiation detectors, in particular PET and SPECT scanners, and large detector systems in elementary particle, nuclear and astrophysics experiments. The ASICs, developed in CMOS 130 and 350 nm technologies, provide a large number of Silicon Photomultipliers or Avalanche Photodiodes input channels. Very low-noise and low-power make the circuits suitable for large high-performance systems. Including high performance TDCs and ADCs, the ASICs provide excellent timing and amplitude measurement. High-speed output digital links allow the integration in high-performance data acquisition systems.

(read more)

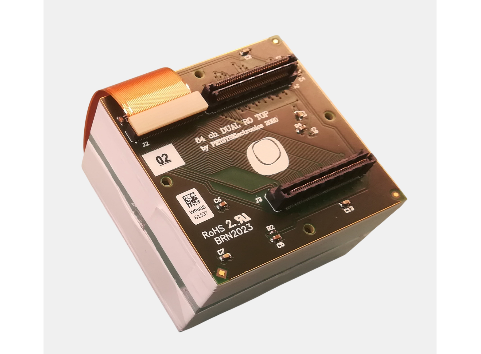

PET Detector Modules

PETsys Electronics provides complete Detector Modules for PET scanners. The Detector Modules are based on LYSO crystals associated to Silicon Photomultipliers or Avalanche Photodiodes. The Detector Module includes low-noise and low-power electronics for detector biasing, pulse conditioning, time and amplitude measurement and digital readout. High-speed digital links for clock and sync distribution, data readout and frontend configuration allow for easy integration in high-performance data acquisition systems.

(read more)

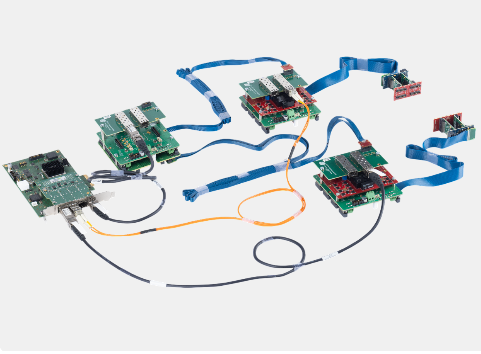

Electronics Systems

PETsys Electronics provides electronics boards for radiation detectors suitable for easy implementation of large systems scalable to several ten thousand channel, in particular in PET scanners. The electronics boards provide a large range of functionality, including frontend signal conditioning and amplification, pulse discrimination, time and amplitude measurement. DC-DC converters and regulators generate all required voltages from a single power supply line. When combined in a full system, PETsys electronics boards allow the acquisition of data to a suitable PC at very high rates using different access ports. Electrical and optical high-speed links are used allowing the best compromise between performance and cost.

(read more)

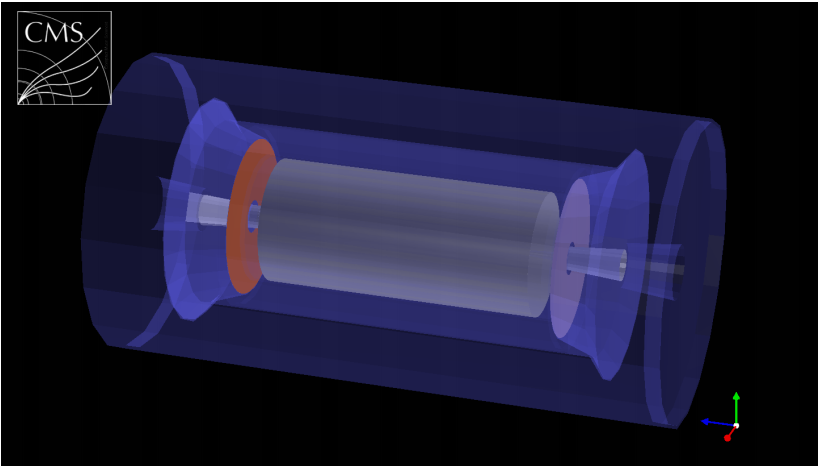

Experimental Physics Applications

The electronics systems of PETsys are suitable for applications in particle physics, nuclear physics and astrophysics experiments. The systems are particularly appropriate for SiPM based detectors like calorimeters or time-of-flight detectors, given its execllent timing performance, low-noise and low power. The data readout of the frontend systems uses standard high-speed optical or electrical links in flexible arrangements allowing for scalability and easy integration in very large systems.

(read more)

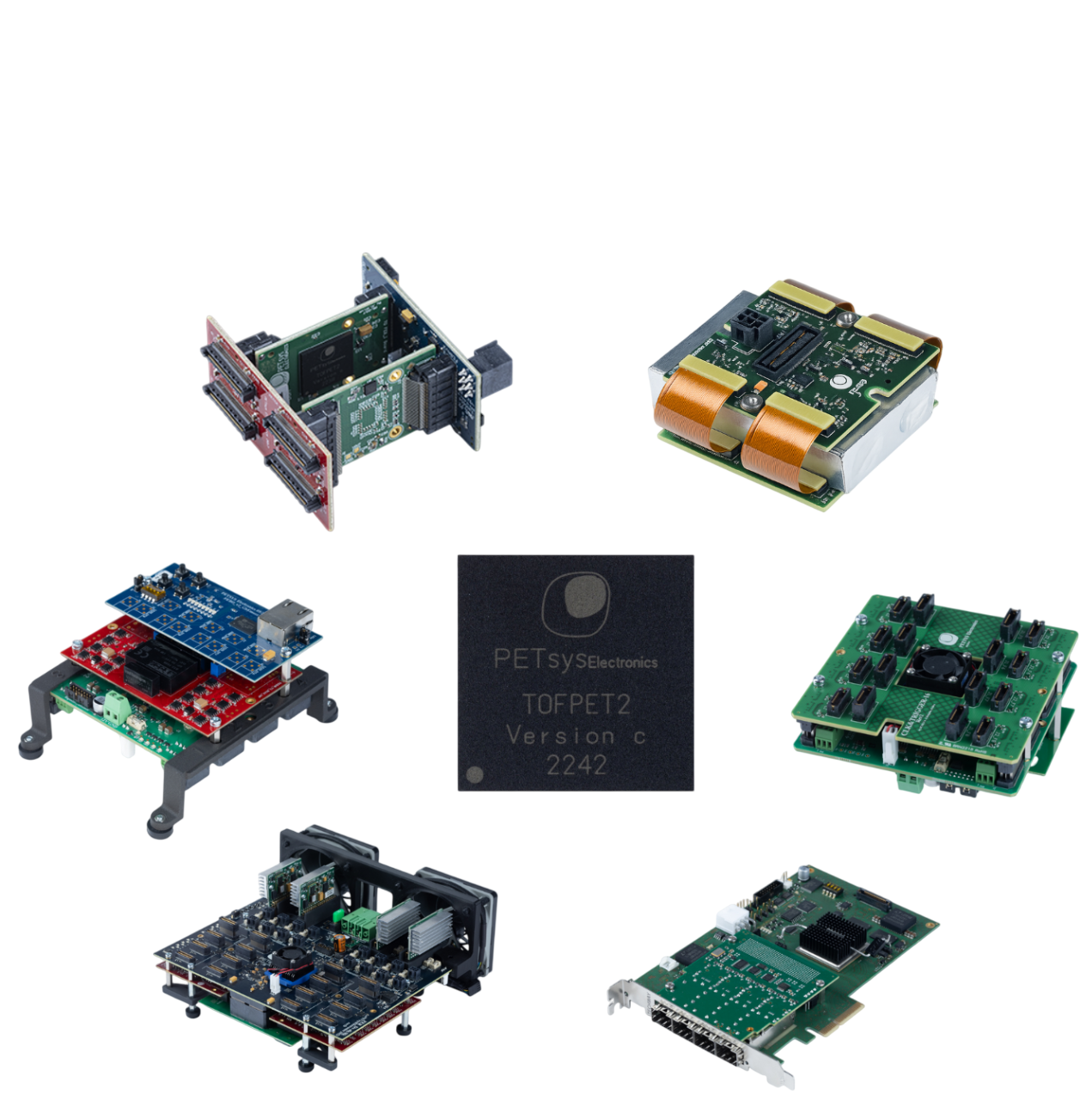

PETsys TOFPET2 ASIC

PETsys Electronics announced the launch of the new TOFPET2 ASIC that is now available.

(read more)

The Company

PETsys Electronics, S.A. builds up on its expertise to propose state-of-the art solutions for the PET detectors of the future, LIDAR and other applications. The technology offered today by PETsys Electronics, stems from more than ten years of R&D development involving a number of public and private partners: The R&D PET-Mammography Consortium (involving approximately 40 people from 10 research institutions), and assembled in 2003, was responsible for the technological solutions (i.e. electronics, mechanics, image reconstruction) that gave birth to two Clear-PEM prototypes.

Meet the Team

Joao Varela

PhD (President and CTO)

University Professor at IST and Researcher at CERN, inventor and promoter of the idea. 25 years’ experience in physics and management of very complex international projects including the Large Hadron Collider.

Professor Joao Varela obtained a Habilitation in Physics fom Technical University of Lisbon/IST in 1990.
He has PhD in high-energy physics from Ecole Polytechnique and University Paris XI, 1984.
He has an Electrical Engineering degree from Technical University of Lisbon/IST, 1976.
Investor and promoter of the idea. Senior scientist at CERN and also Project Director of the PET-Mammography consortium.
Professor in the Department of Physics of IST, University of Lisbon.
In 1986-93 was co-director of LIP (Laboratory of Instrumentation and Particle Physics) in Lisbon.
Coordinated the LIP groups in the CERN experiments NA38/50, Delphi, and CMS at the Large Hadron Collider since 1992.
He was member of several scientific boards at CERN.
Since 2006 he is editor of the Journal of Instrumentation.
He is co-author of more than 300 scientific publications in international journals.
Has long experience in the coordination of international scientific and technological projects.

Vasco Varela

MSc (Board Member and CEO)

Over 20 years experience in management, innovation and technology transfer from University to market. Former CEO of SUN Microsystems’ local distributor. Board Member of several IT companies with active technology transfer operations.

Vasco Varela has a long experience in managing private companies and in innovation and technology transfer activities. He was:
CEO of PETsys Systems, since 2008 and in PETsys Electronics, since 2013;
Executive director of an International Partnerships Program (2007-2012), with a 150 M€ budget, involving major international Universities (MIT, CMU, UTAustin, Harvard) and Portuguese Universities.
Director of TAGUSPARK – Lisboa Science & Technology Park, 1992-2007 (20 M€ Equity; total investment over 100 M€).
He has a background in Engineering and Management:
Post Graduation in Management, AESE, 1994.
Master in Applied Mathematics and Computer Science, Technical University of Lisbon/IST, 1981-1984 (at the nuclear reactor research facility, in Lisbon).
Electrical Engineering, Electronics and Telecommunications, Technical University of Lisbon/IST, 1975-1980.
